THERMO DYNAMICS LAB
Thermodynamics is the study of the conversion of energy into work and heat and its relation to macroscopic variables such as temperature, volume and pressure.
THERMO DYNAMICS LAB
List of THERMO DYNAMICS LAB :
THERMO DYNAMICS LAB. |
||||
|---|---|---|---|---|
S.No. |
||||
| 1. | TD-01 Single Cylinder Four Stroke Petrol Engine test rig.
with Rope Brake/electrical Dynamometer |
|||

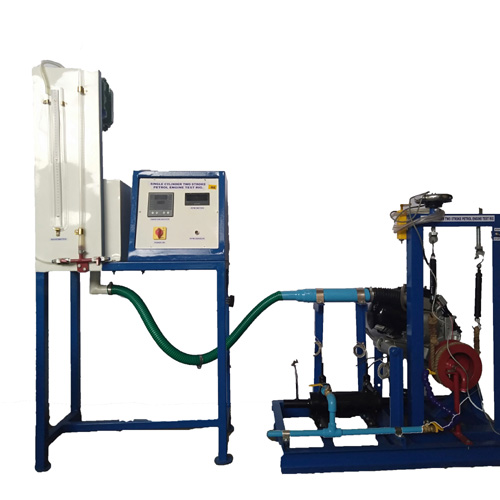

| 2 | TD-02 Single Cylinder Two Stroke Air Cooled Petrol Engine test rig.
with Belt Brake Dynamometer |
|||

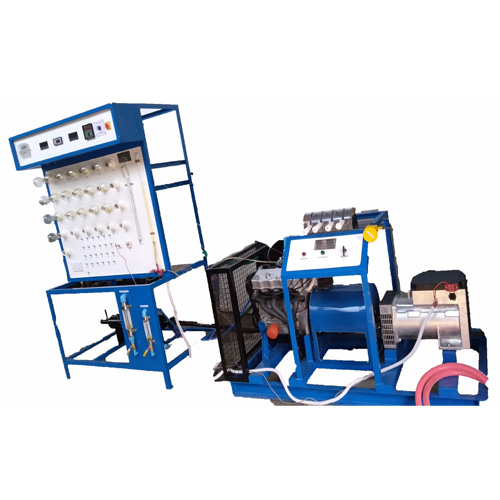

| 3 | TD-03 Multi Cylinder four Stroke Petrol Engine test rig. with Rope Brake/Electrical/Hydraulic Dynamometer & Morse Test arrangement |
|||

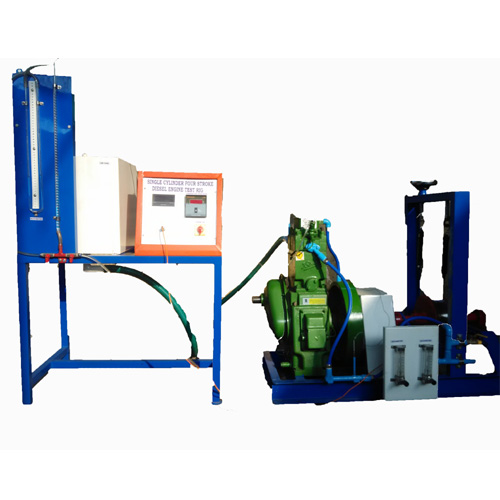

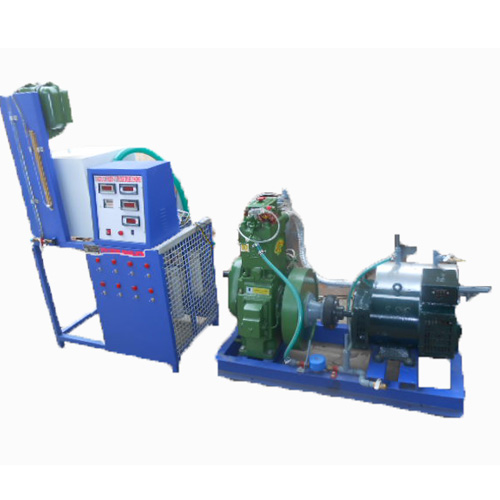

| 4 | TD-04 Single Cylinder Four Stroke Diesel Engine Test rig. (5 H.P.) with Rope Brake/Electrical Dynamometer |
|||
| 5 |
TD-05 Cut Section Model of Actual Single Cylinder Two Stroke Petrol Engine for plotting the Port Timing Diagram |
|||
| 6 | TD-06 Cut Section Model of Actual Single Cylinder Four Stroke Petrol Engine for plotting the Valve Timing Diagram. |
|||
| 7 | TD-07 Cut Section Model of Actual Single Cylinder Four Stroke Diesel Engine for plotting the Valve Timing Diagram |
|||

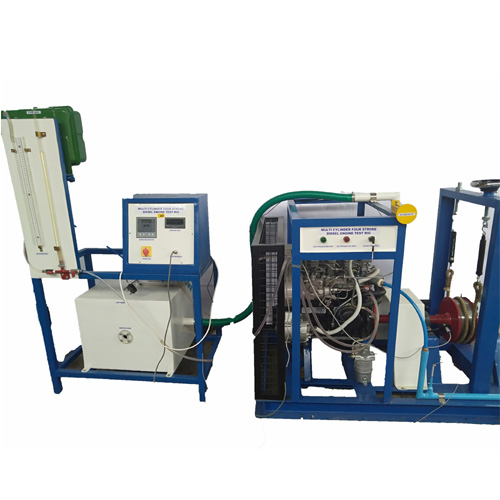

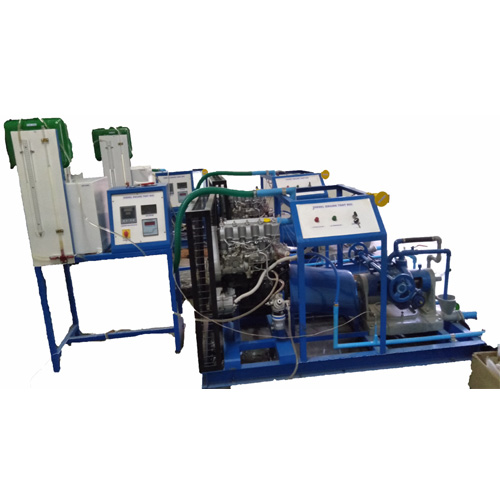

| 8 | TD-08 Multi Cylinder four Stroke Diesel Engine test rig.
with Rope Brake/Electrical Dynamometer |
|||
| 9 | TD-09 Twin Cylinder four Stroke Diesel Engine test rig.
with Rope Brake/ electrical/ hydraulic Dynamometer |
|||
| 10 | TD-10 Single Cylinder Four Stroke Horizontal Diesel Engine Test rig. with Rope Brake/electrical Dynamometer |
|||
| 11 | TD-11 Exhaust Gas Calorimeter |
|||

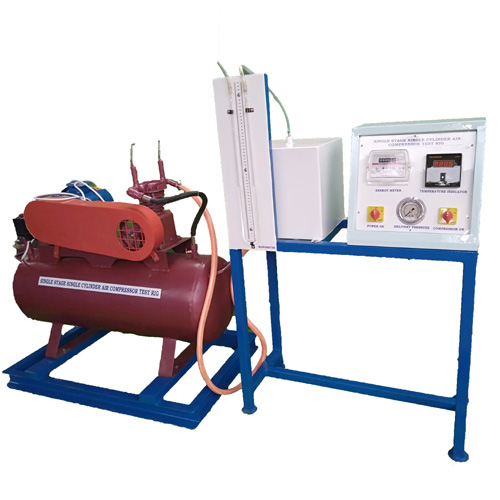

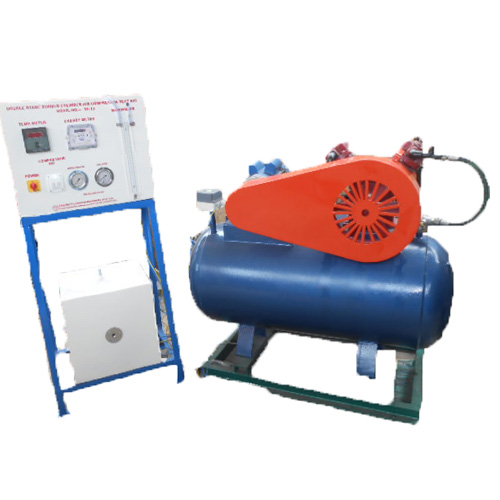

| 12 | TD-12 Single Stage, Single Cylinder Air Compressor Test rig |
|||
| 13 | TD-13 Two Stage, Twin Cylinder Air Compressor Test rig. |
|||
| 14 | TD-14 Constant Speed Air Blower Test rig. |
|||
| 15 | TD-15 Variable Speed Air Blower Test rig. |
|||
| 16 | TD-16 Three Cylinder four Stroke petrol Engine test rig.
with Rope Brake Dynamometer |
|||
