PROCESS CONTROL LAB
Process control lab enables the practical study of Pressure Control Trainer, Level Control Trainer, Temperature Control trainer, Flow Control Trainer, Interacting and non-interacting system etc.
PROCESS CONTROL LAB
List of PROCESS CONTROL LAB :
PROCESS CONTROL LAB. |
|||||
|---|---|---|---|---|---|
S.No. |
|||||
| 1. | PC-01 Pressure Control Trainer |
||||

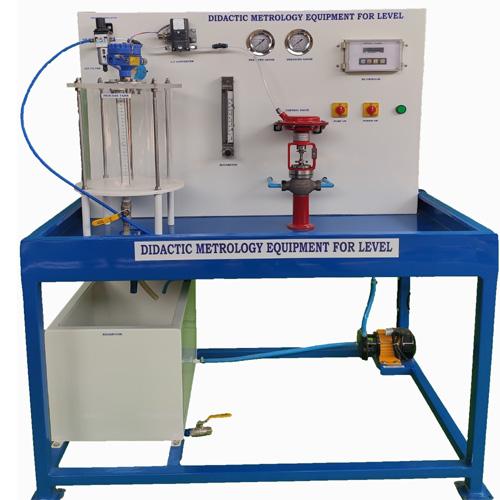

| 2 | PC-02 Level Control Trainer |
||||
| 3 | PC-03 Temperature Control Trainer |
||||
| 4 | PC-04 Flow Control Trainer |
||||

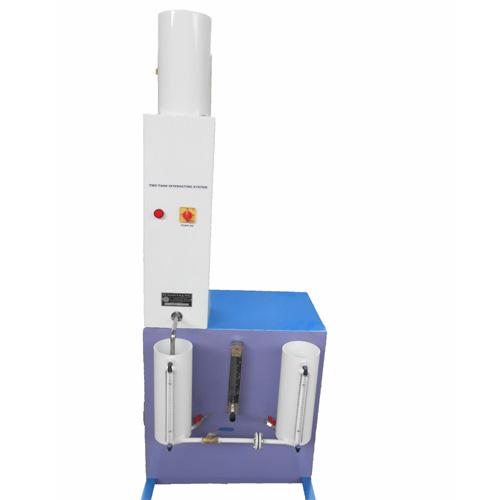

| 5 | PC-05 Two Tank Interacting System |
||||
| 6 | PC-06 Two Tank Non Interacting System |
||||

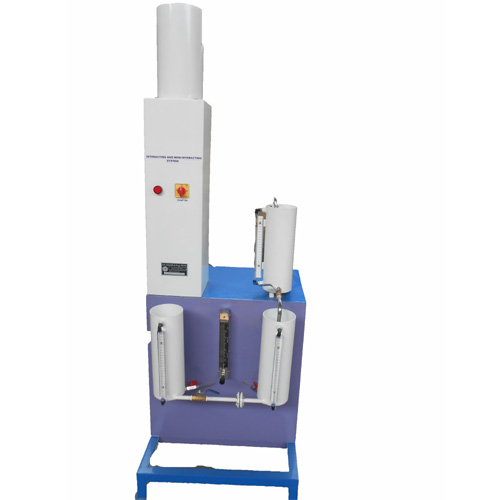

| 7 | PC-07 Interacting and non-interacting system |
||||
| 8 | PC-08 Single tank system |
||||
| 9 | PC-09 Cascade control Trainer |
||||
| 10 | PC-10 Multi process trainer |
||||

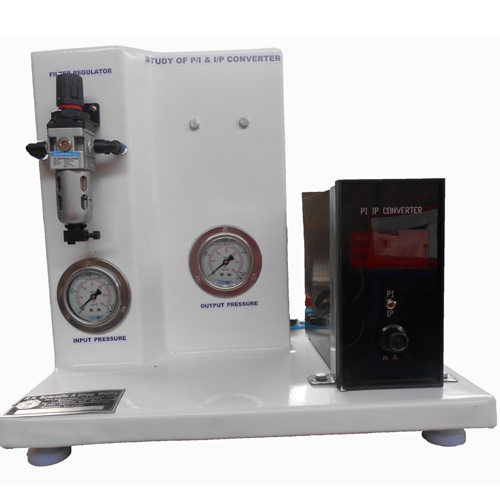

| 11 | PC-11 Study of P/I and I/p convertor |
||||
| 12 | PC-12 Control Valve Characteristics |
||||

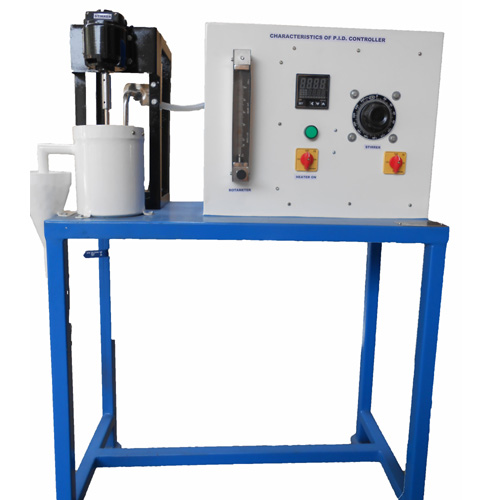

| 13 | PC-13 Characteristics of P.I.D. controller |
||||
| 14 | PC-14 Time constant of manometer |
||||

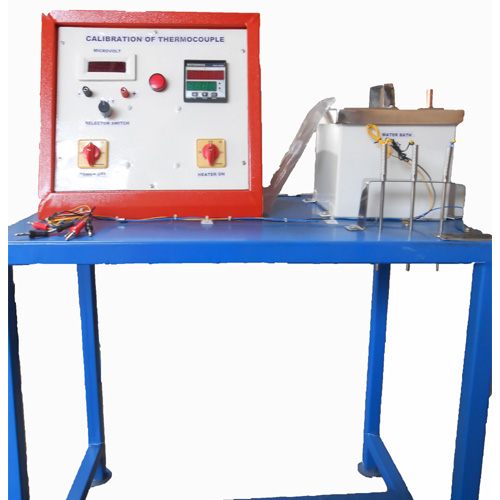

| 15 | PC-15 Time constant of thermocouples and thermometer |
||||
| 16 | PC-16 Measurement of level by air purge method |
||||
| 17 | PC-17 Measurement of level by capacitance method |
||||
